Defining a Fire Zone with the Fire Area Method

This tutorial uses the setup from Tutorial 1. Please complete Tutorial 1 before starting this tutorial or download it from Detect3D (22MB)



A fire zone using the Fire Area Method is defined in the same way as with the Point Method.


This example will go over making a new zone with the same dimensions as the zone that is already defined in the Tutorial 1.d3d file. This will allow us to compare the coverage results of the Fire Area Method with the Point Method.


  1. Ensure that the Main Fire Zone of the Tutorial 1.d3d file is visible in the 3D window by checking the box next to its name in the Project Items Tab.

  2. Click the Add Item tab and select Zone from the dropdown menu.

  3. Set the name of the fire zone to “Fire Area Method Zone”

  4. Select Fire Mapping Only from the Type dropdown menu and leave the Risk Grade set to Default.

  5. For the Point 1 definition, use the pick tool, , and the bottom corner of the zone nearest Flame Detector 01 . Figure 1 below shows how the corner of the Main Fire Zone has a red cross hair which can be selected by the pick tool. Alternatively, you may enter the coordinates ( 1, 1, 0 ).


    Detect3D Fire and Gas Mapping Fire Area Method Zone

    Tutorial 13 - Figure 01 - Point 1 selection using the pick tool to select the same definition point as the Main Fire Zone defined in Tutorial 1


  6. For the second defining point move the 3D window to view the upper corner of the Main Fire Zone closest to Flame Detector 02 , click the arrow button  next to the Point 2 coordinate text boxes. Click the upper corner of the Main Fire Zone as shown in Figure 2 below or enter the values of ( 17, 20, 4.5 ).


    Detect3D Fire and Gas Mapping Fire Area Method Zone

    Tutorial 13 - Figure 02 - Selection of the Point 2 for the new fire zone near Flame Detector 02

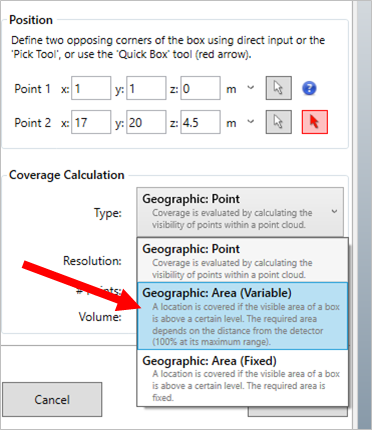

  7. In the Coverage Calculation section of the panel, change the Type to Geographic: Area (Variable) as shown in Figure 3.


    Tutorial 13 - Figure 03 - Setting the zone to use the Fire Area Method for coverage calculations

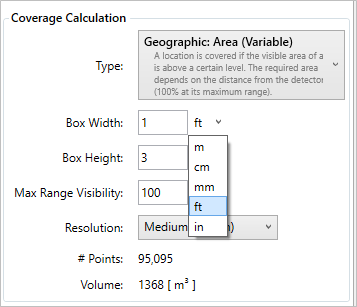

  8. For this tutorial we will look at a Fire Area with dimensions of 1ft  x 3ft in size. Ensure that the units are set to feet by clicking the units text to open the unit's dropdown menu (Figure 4) and selecting "feet" as the units for the Box Width


    Tutorial 13 - Figure 04 - selection of feet as the units for the Fire Area Region size


  9. Enter a value of "1.0" feet as the Width

  10. Enter a value of "3.0" feet as the Height.

  11. Leave the Resolution set to "Medium"

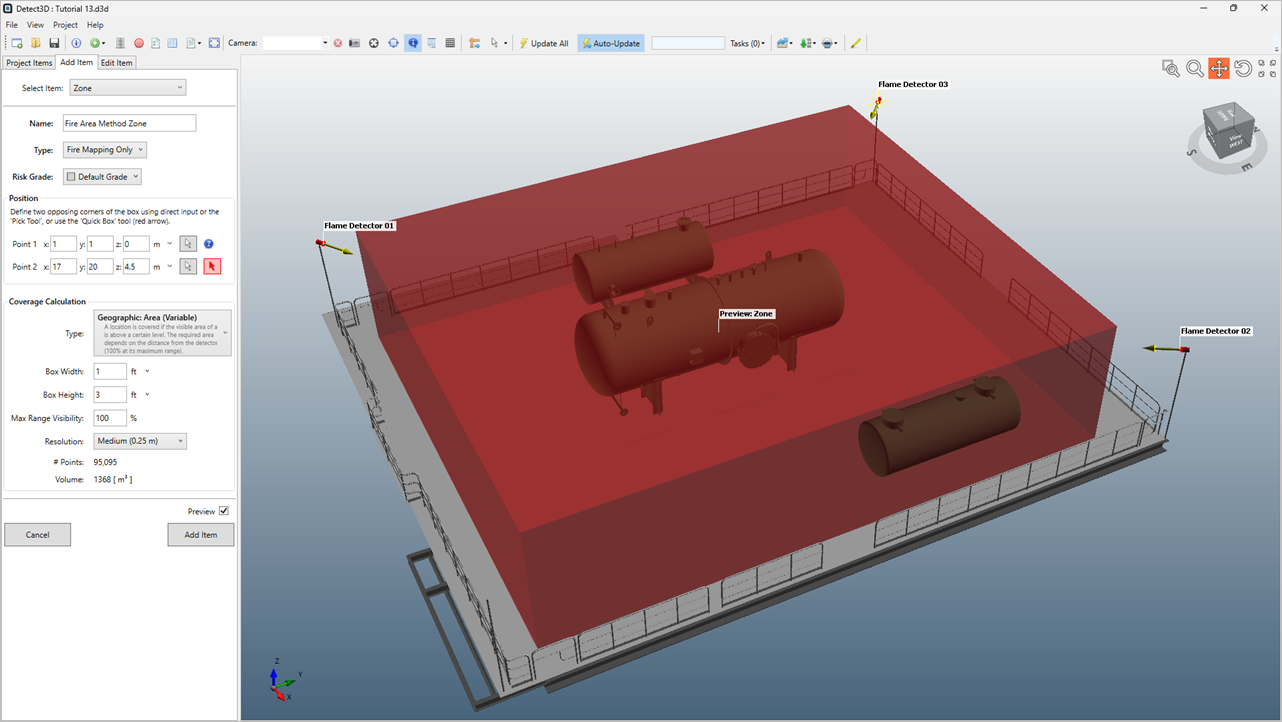

  12. Click the Preview check box to view the defined fire zone and ensure that the red cuboid encompasses the three tanks in the middle of the module. Your window should match Figure 5.


    Detect3D Tutorial 13 Preview of Fire Area Method Zone

    Tutorial 13 - Figure 05 - information entered for the Fire Area Method Zone


  13. Select the Add Item button to add the Fire Area Method Zone to the project items tree.



Switch to the Project Items tab and notice the new zone has been added under the Zones heading in the project items tree. Deselect the checkbox next to both fire zones in the project to toggle off their visibility before continuing.
